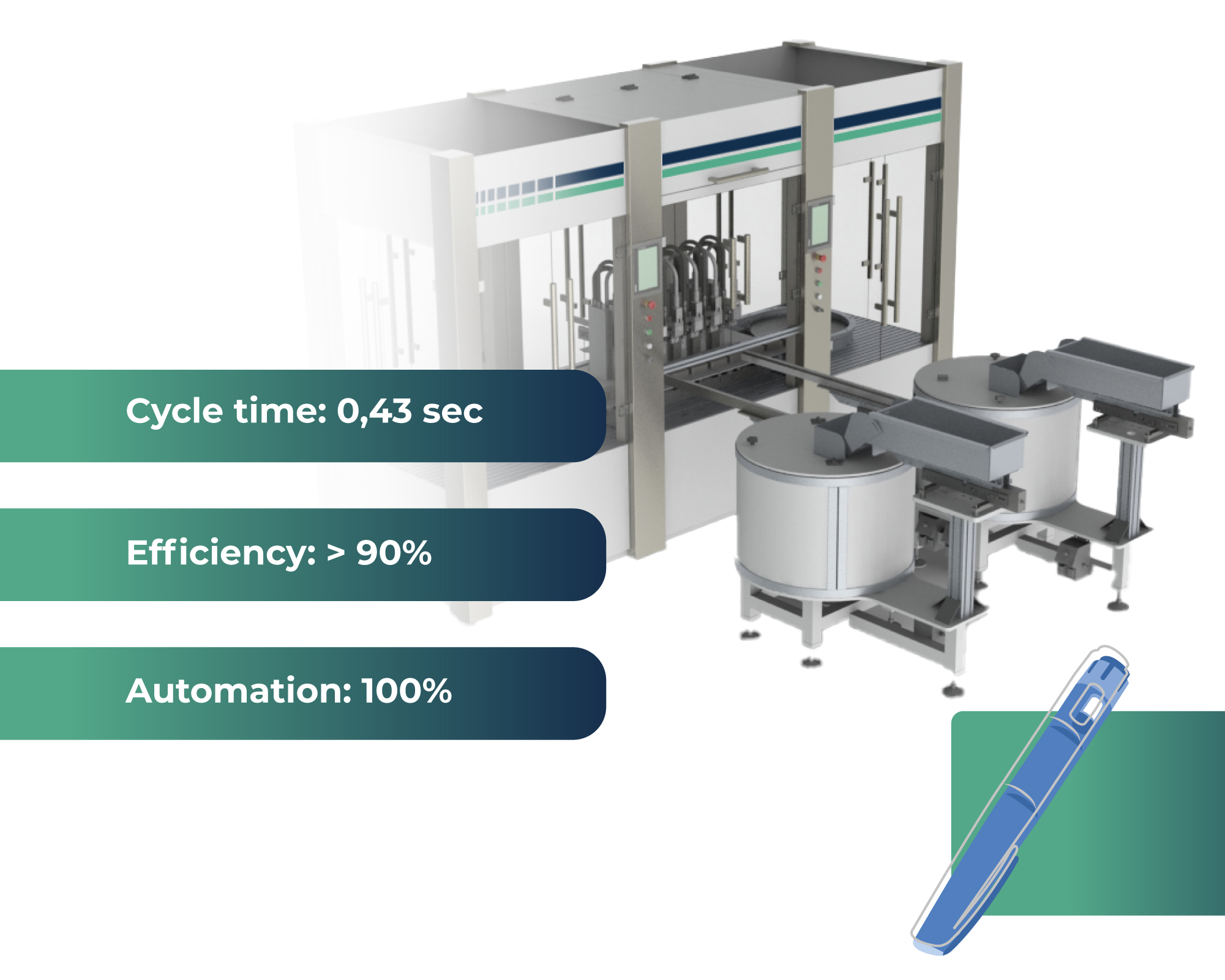

Automated assembly line
for injector pen bodies

Design and construction of a high-efficiency custom line
for the medical sector – 15 product variants

THE PROJECT

Bonetto Med-Tech has developed a fully automated assembly line for medical Injector Pen bodies, engineered to manage up to 15 different product variants within a single integrated system.

The line stands out for its intelligent changeover management: switching between variants is performed via software-driven recipe changes, featuring automatic retooling and rapid feeder emptying to effectively eliminate setup downtime.

The system is qualified to operate in controlled environments according to ISO 14644 standards (Cleanroom ISO Class 8), utilizing materials and components specifically selected for medical applications.

ADVANTAGES
  • Multi-variant management: Handling of 15 Pen Body variants on a single production line.
  • Automatic software-driven changeover: Zero downtime for setup.
  • Automatic feeders: Integrated rapid emptying system for efficient component switching.
  • Compact modular layout: Optimized for cleanroom environments.
  • Full integration: Seamless synergy of mechanical engineering, machine vision, and software.
  • In-line functional testing: 100% testing on every single unit produced. Traceability and differentiated reject management: Comprehensive tracking and automated sorting of non-conforming parts.
LAYOUT & OPERATIVE STATION

The production line includes several functional stations, such as:

• Components loading onto pallets

• Presence and geometry inspections

• Orientation and alignment check

• Reject station for non-conforming parts

• Silicon application

• Functional tests

• Unloading of good parts / Q-parts / Rejects parts

QUALITY CONTROL AND TRACEABILITY
Real-time monitoring and verification for every unit throughout the entire production line
  • Machine vision systems for dimensional inspection and component presence detection.
  • Functional testing: setting torque, zero return, body height, and piston position.
  • Differentiated reject management: segregated handling of good parts, Q-parts, and scrap.
  • Full traceability for every Pen Body produced.
